27.5 Inch Air Fork XC32A 120mm Travel & Rebound - Straight Steerer Black Quick Release


27.5 Inch Air Fork XC32A 120mm Travel & Rebound - Straight Steerer Black Quick Release


Products will be delivered between 1 and 5.

0 watching this item.
0 have this item in their cart.
Product description

Air Bike is delighted to announce the release of the XC32A HLO mountain bike suspension fork with straight steerer tube, shoulder hydraulic lockout and 120mm of plush travel. The XC32A HLO comes with a 1 1/8 straight steerer or tapered steerer and should fit 80% of bikes manufactured.

Our fork is designed by us, a group of cycling fanatics, specifically for the UK MTB scene and is built to our specifications by a world-leading fork manufacturer. We are positive that you will be blown away by the build quality as it really is second to none and is covered by a ‘no quibble’ 30-day money back guarantee.

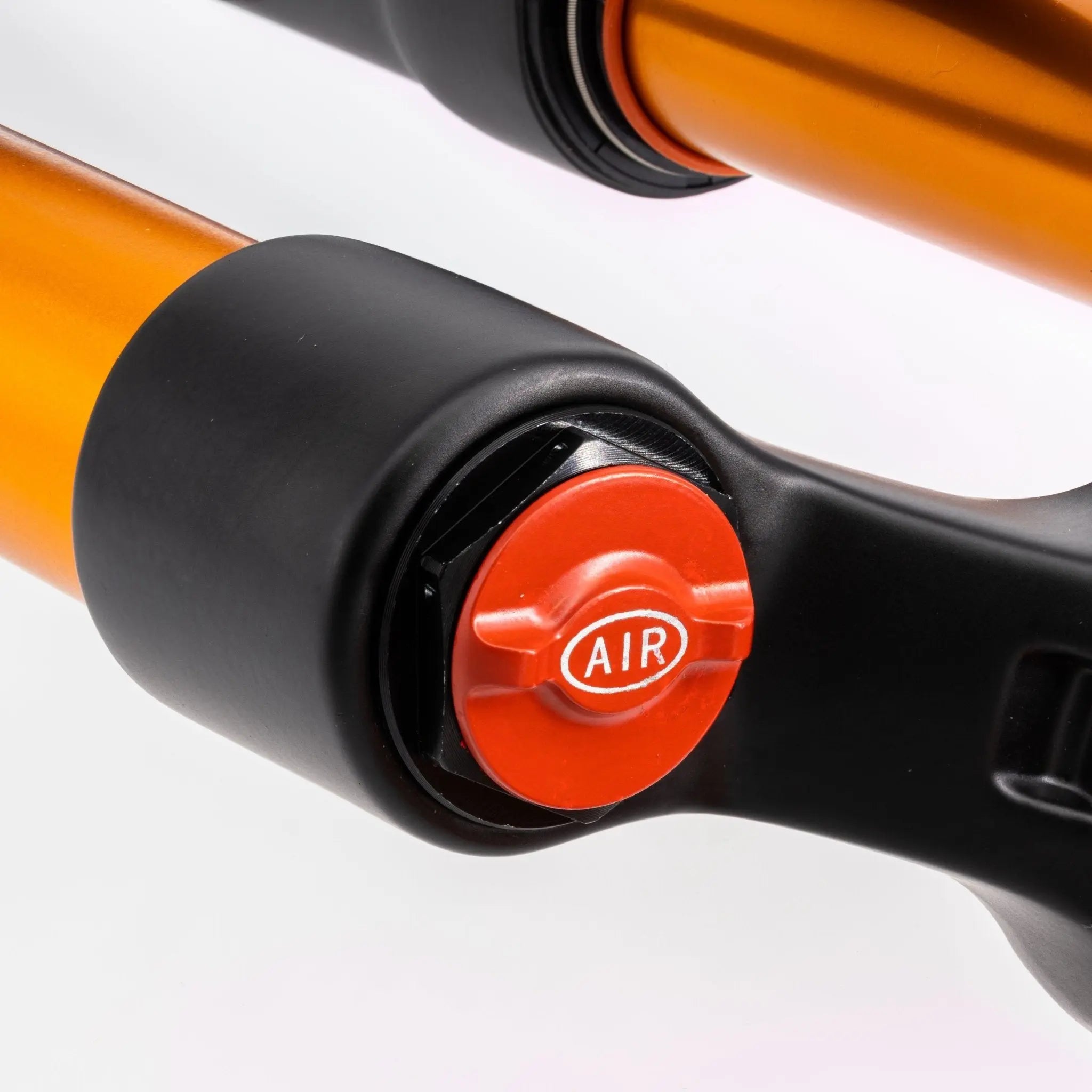

Air Sprung

The XC32A HLO fork features 120mm of playful air-adjustable suspension, offering a buttery smooth ride and the ability to tailor the spring stiffness to the rider’s weight by adding or reducing air pressure in the air chamber. The advantage of an air spring over a coil spring is that the air spring dramatically reduces the overall weight of the XC32A HLO fork, leading to a jaw dropping total weight of 1720g.

Note: The fork technology has about 10-20mm of sag from factory which helps prevent bottom-out.

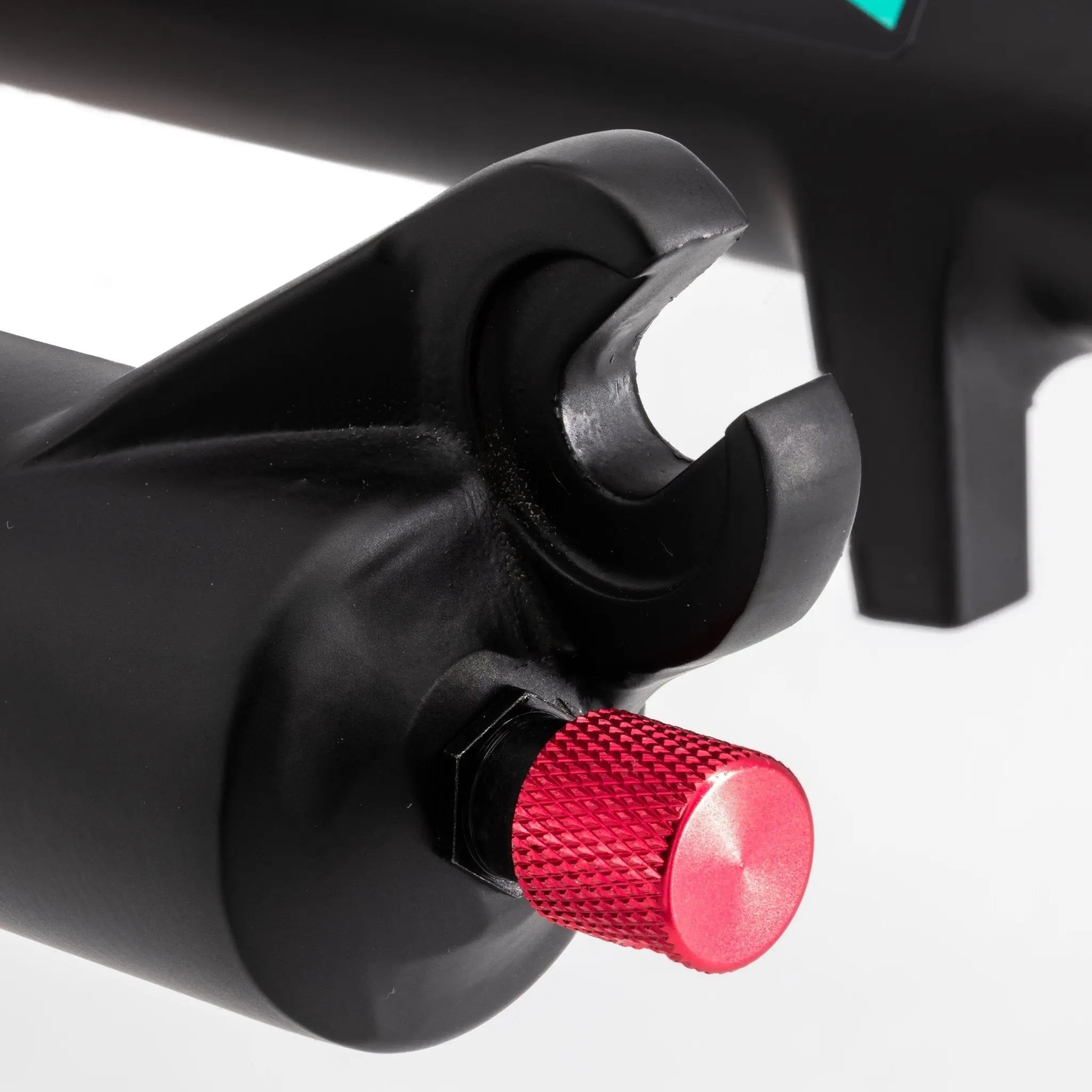

Adjustable Rebound

The XC32A HLO fork is fully rebound-adjustable. Rebound adjustment is critical for cornering control as it ensures that the front wheel remains in contact with the ground as much as possible, bolstering traction when things get slippery. Finding your sweet-spot will also reduce wrist, elbow and shoulder fatigue by controlling fork bounce over the rough stuff.

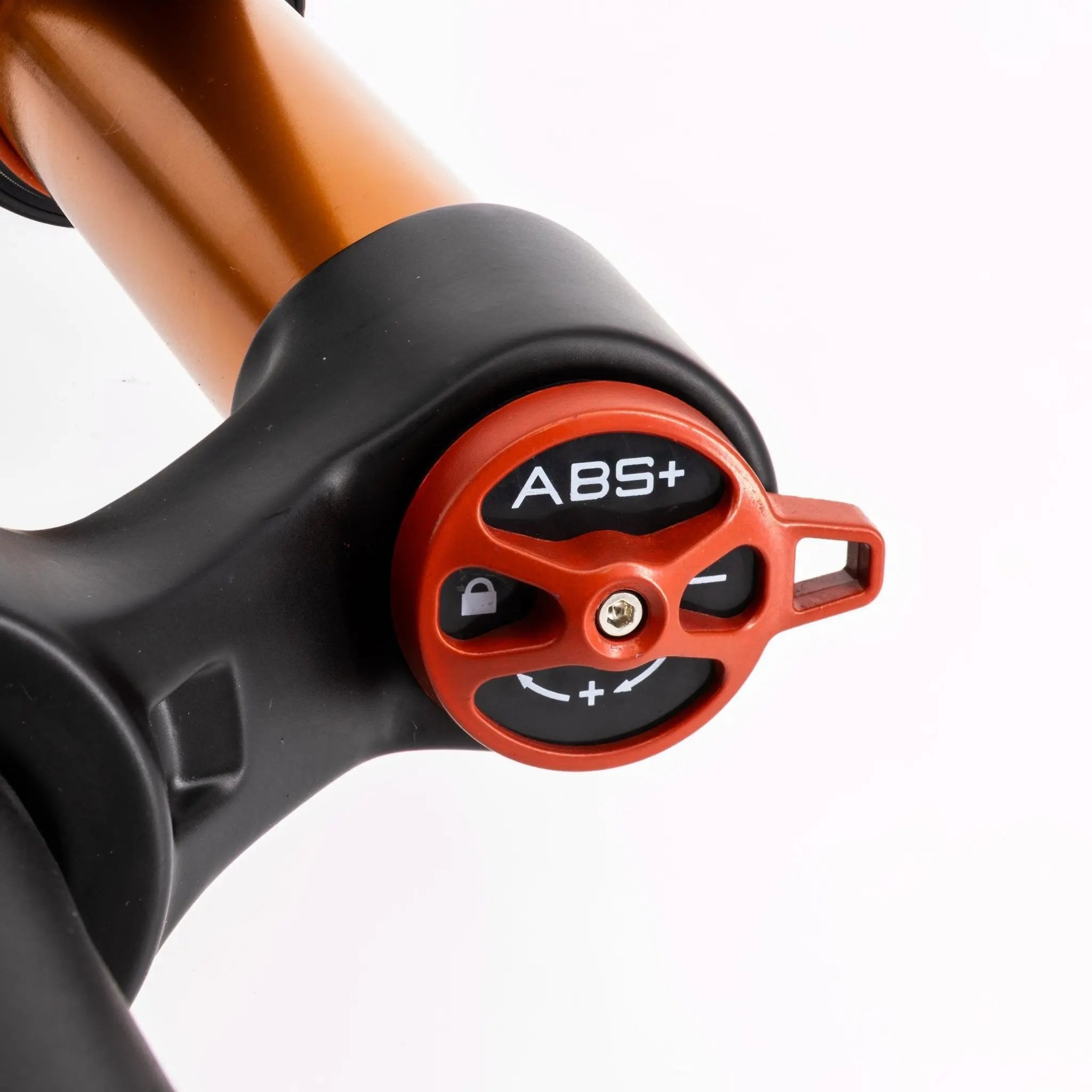

Hydraulic Lockout

The XC32A HLO fork features our *Hydraulic Gated Lockout System so you can progressively tune the fork’s stiffness. Now you can ride uphill fully locked-out with no bounce, reducing effort and making your ride that bit more enjoyable! This clever Lockout system also reduces the overall fork weight by roughly 350 grams.

We are passionate about the environment and actively manage our carbon footprint. To minimise our environmental impact, all warranties, manuals, invoices and after care correspondence will be sent to you electronically after purchase. No more wasted paper!


Intended Use



27.5 Inch (650B)



Max Disc


Right Side

HLO-Hydraulic Lock Out Lever

Left Side

Air Spring


Solid Forged Crown


32mm Dia A6000 Hard anodized Gold


Ultra Light Magnesium


Postmount 160mm

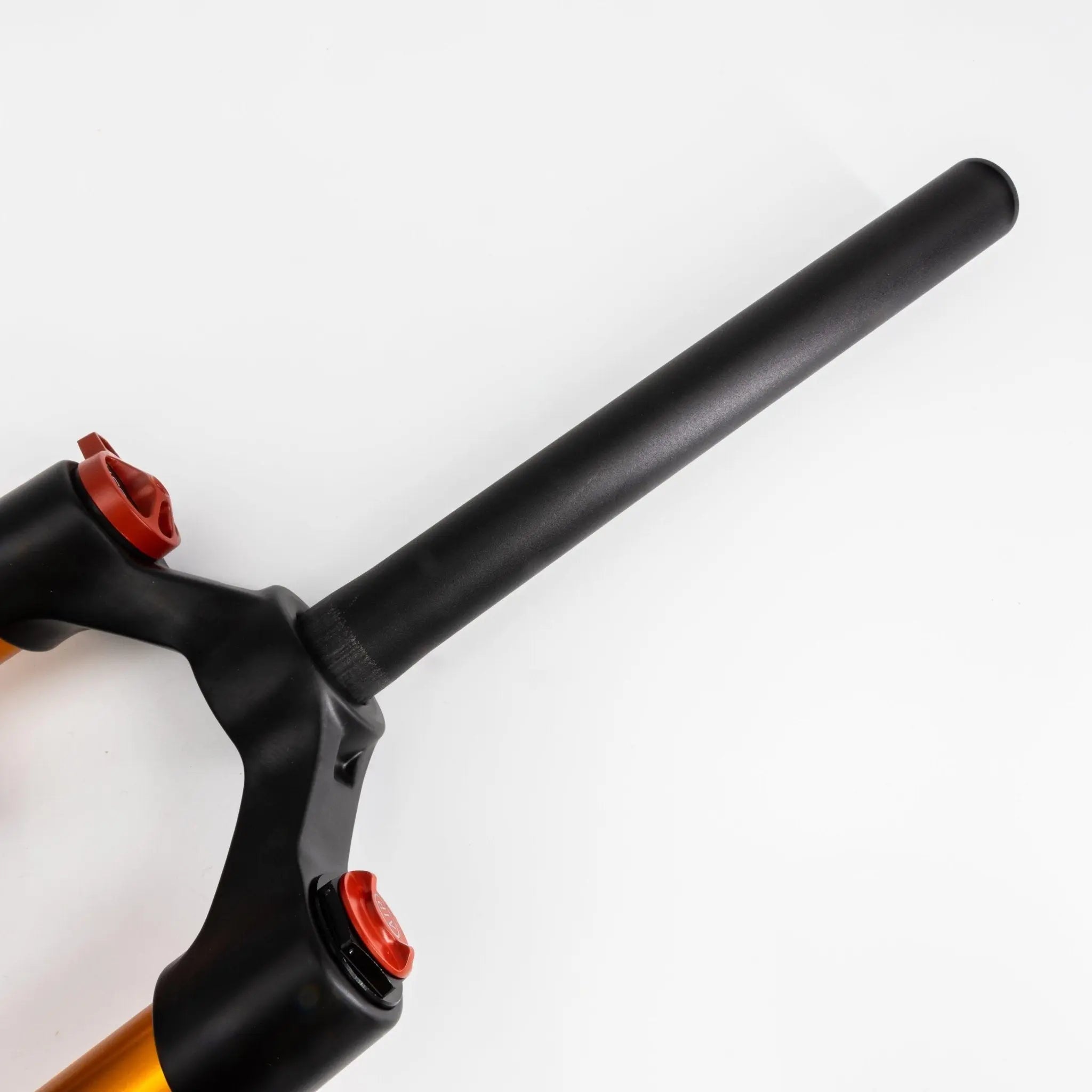

Steerer Tube

1-1/8” 28.6mm Alloy 250mm Long


9mm Dropout


1720g +/- 5%

Max Tyre Size

2.40 Inch
